Description

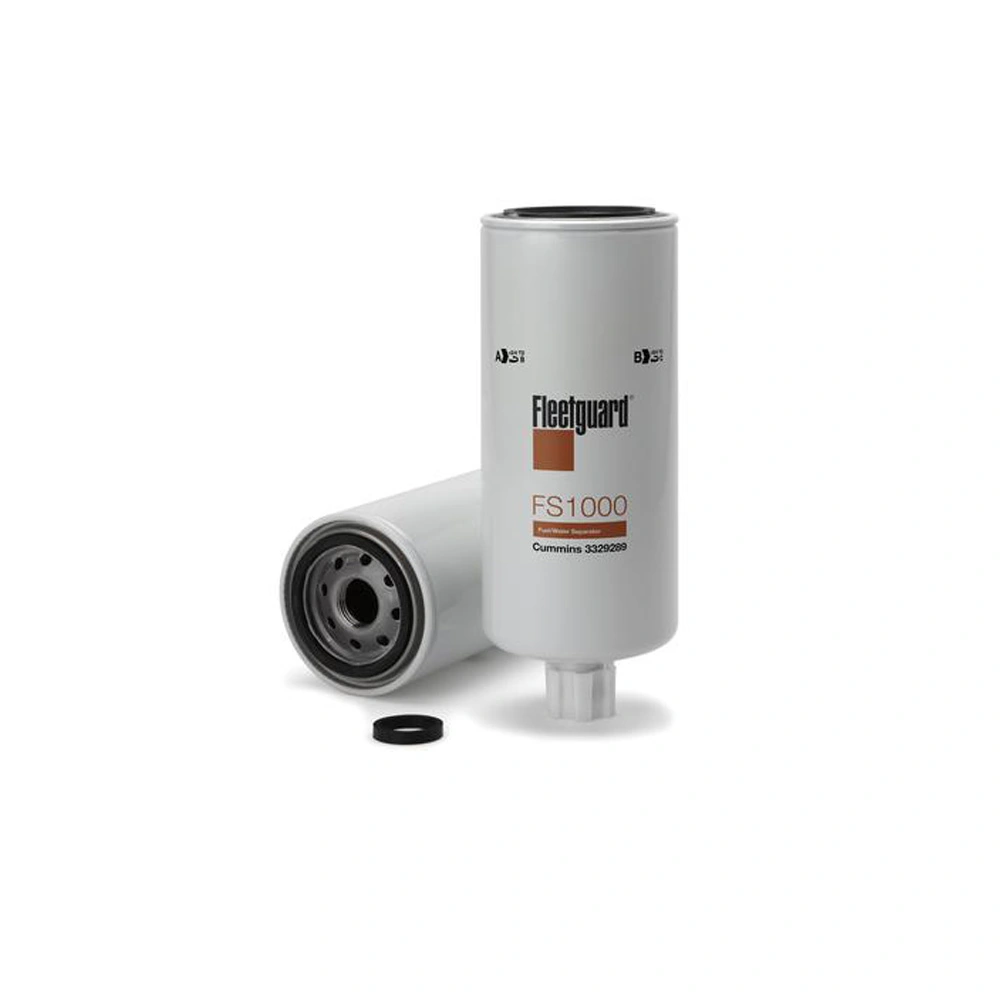

The Fleetguard FS1000 Spin On Diesel Fuel filter benefits:

• Has metal housing which now makes this Fuel Water Separator an environmentally friendly filter.
• Approved for use with both Bio-Diesel and Ultra Low Sulfur Diesel compatible.
• Removes entrained water and emulsified water.
• Filters to a 10 Micron level

This Fleetguard FS1000 Replacement Fuel and Water Separator Filter applications:

• Cummins N14,LTA10,NTA855,QSM11, M11-C, ISM02, ISM07, M11-C,
• Caterpillar C7, C9, C10, C11, C12, C13, and C15 series diesel engines

Fleetguard FS1001 Diesel Fuel Water Separator Filter Specification’s

• Overall Height 249.07 mm  or 9.806 inches
• Largest OD     93.47 mm  or 3.68 inches
• Seam OD     93.22 mm  or 3.67 inches
• Gasket OD     71.88 mm  or 2.83 inches
• GASKET ID    62.48 mm or 2.46 inches
• Thread Size    1-14 UNS-2B
• Standpipe     YES
• EMULSIFIED WATER SEPARATION   95 %
• FREE WATER SEPARATION  95 %
• EFFICIENCY, TWA BY SAE J 1985 98.7 %
• MICRON RATING BY SAE J 1985 10 Micron

Diesel Fuel Water Separator Filter Cross References:

• FASS FS-1001
• Cummins 3413084
• ABC BUS 631204850
• AC TP1292
• AGCO 72515622
• ATLAS COPCO 5541-7098-00
• BALDWIN BF1259
• BLOUNT 10064607
• CARQUEST 86406
• CASE 87674239
• CATERPILLAR 2568753
• CUMMINS 3329289
• TEREX 15271319
• John Deere RE160384
